Aluminum Composite Panels

Top-Class Non-Combustible Interior & Exterior Finishing Materials

Since 1984, the spirit of Wooshin has prioritized customer success, helping clients achieve competitiveness and business performance.
Wooshin Co., Ltd. is committed to contributing to customer success by providing the best products through the integration of cutting-edge automated sandwich panel production facilities, technological innovation, and a forward-thinking mindset aimed at becoming a leading company.

ALCOWALL / FR?

ALCOWALL/FR

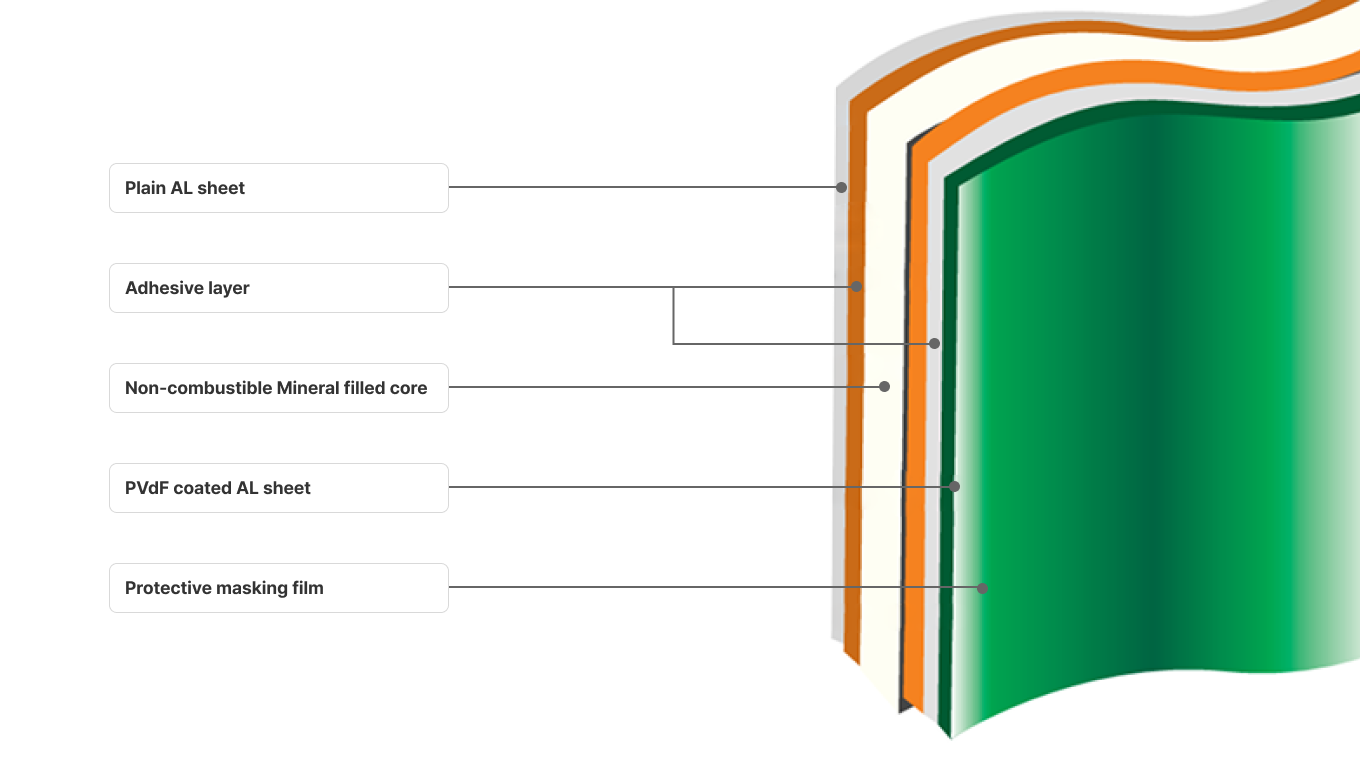

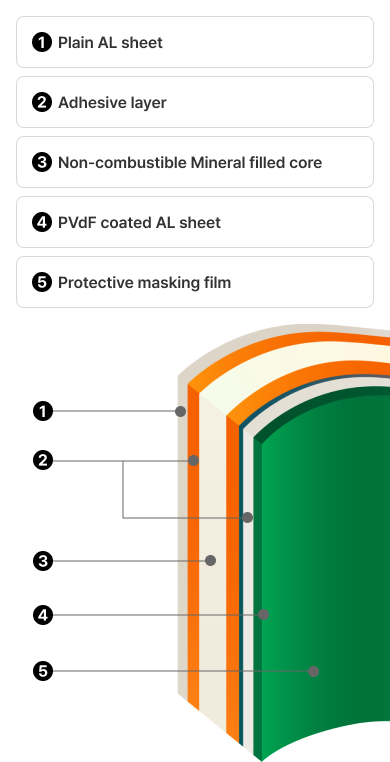

ALCOWALL FR is Wooshin Apec's flagship product, featuring a quasi-noncombustible fire safety rating by filling non-halogen inorganic core material between 0.5T aluminum sheets. In case of fire, it does not produce toxic gases, eliminating the risk of asphyxiation. Composed of excellent fire-resistant inorganic materials, it also limits excessive smoke during a fire, making it easier to secure visibility for evacuation.

ALCOWALL FR was created with quality and technology recognized globally. Wooshin Apec Co., Ltd., which has grown into a specialized manufacturer of interior/exterior materials for over 40 years, will continue to do its best through continuous research and effort.

Key Features

Product Specifications

Thickness4mm3mm ~ 6mm (Inquire separately)
Width1020mm, 1250mm, 1575mmCustom widths (Inquire separately)
Length2,000mm ~ 5,000mm (Recommended)No limit
CoatingPVDF (Fluoropolymer), ANTI, CERAMIC
ColorsOver 30 Wooshin Apec Standard ColorsCustom colors (Inquire separately)

Product Performance

Performance ItemTest MethodKS F 4737 StandardALCOWALL FR
Flexural Strength N/mm²KS F 4737 7.490.0 or more112.8
Tensile Strength N/mm²KS F 4737 7.540.0 or more54
Elongation %KS F 4737 7.518 or less8
AppearanceKS F 4737 7.7-No abnormalities
Dimensions - ThicknessKS F 4737 7.70.24.1
Stain ResistanceKS F 4737 7.7Grade 4 or higher4-5
Hot & Cold Cycle (Length Change Rate)KS F 4737 7.8No length change0

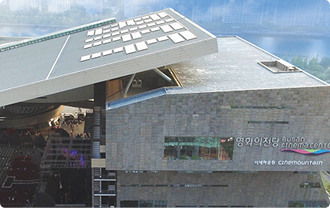

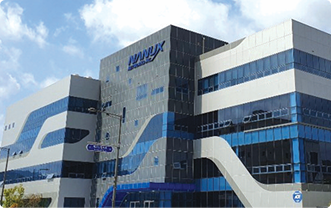

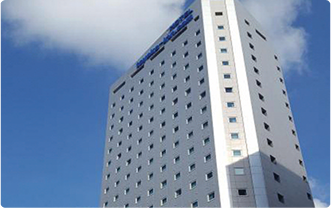

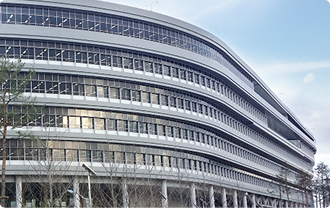

Construction Cases
